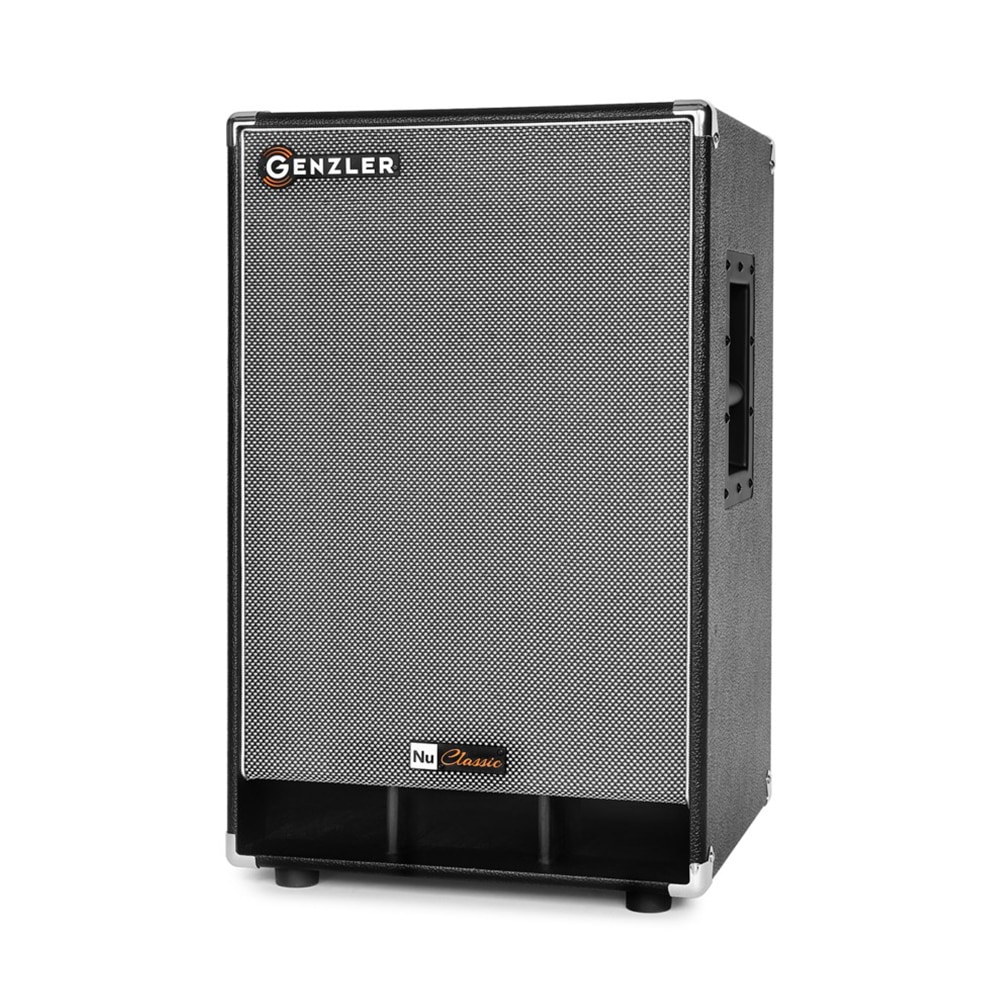

GENZLER NuClassic- NC210T

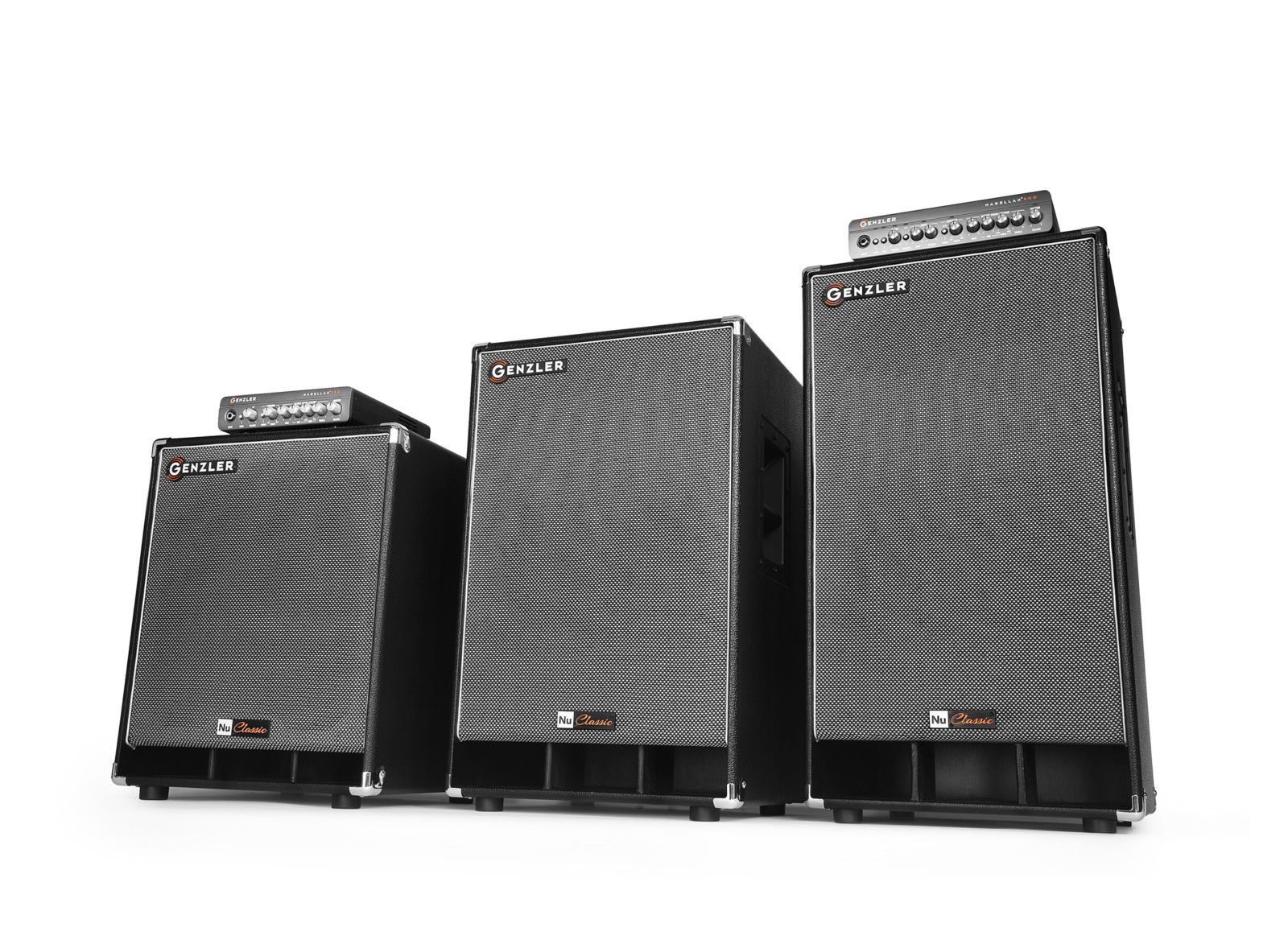

The Nu Classic Series from Genzler, is a series of three different cabinets – all built from Plywood, and all light.
A very competitive line of cabinets.
OVERVIEW
- Vertical Cabinet Design
- Light, 12mm Plywood Construction, with internal Bracing
- Ferrite/Ceramic 10” Loudspeakers and Compression Tweeter

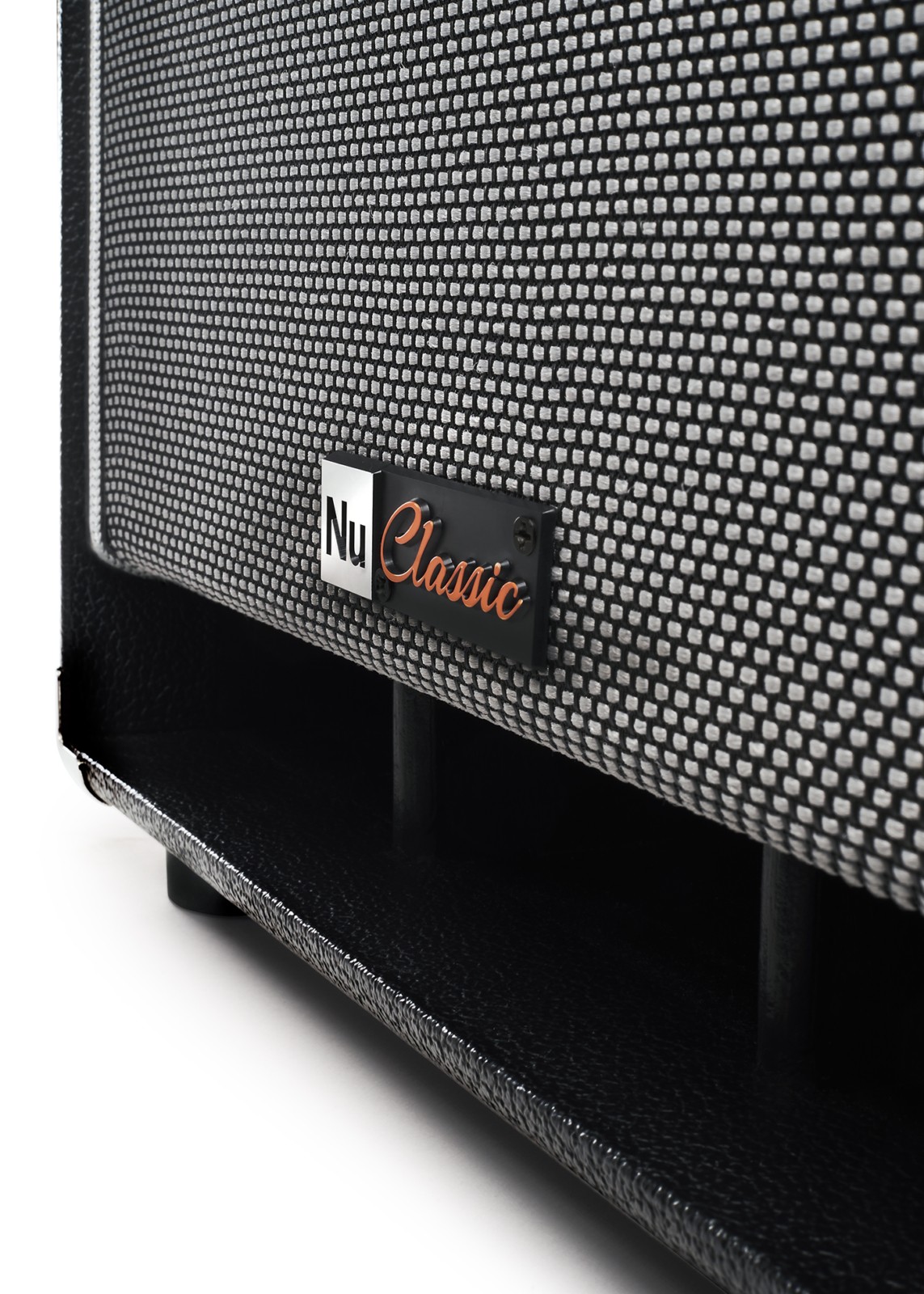

- Ported design
- Internal Acoustic Dampening

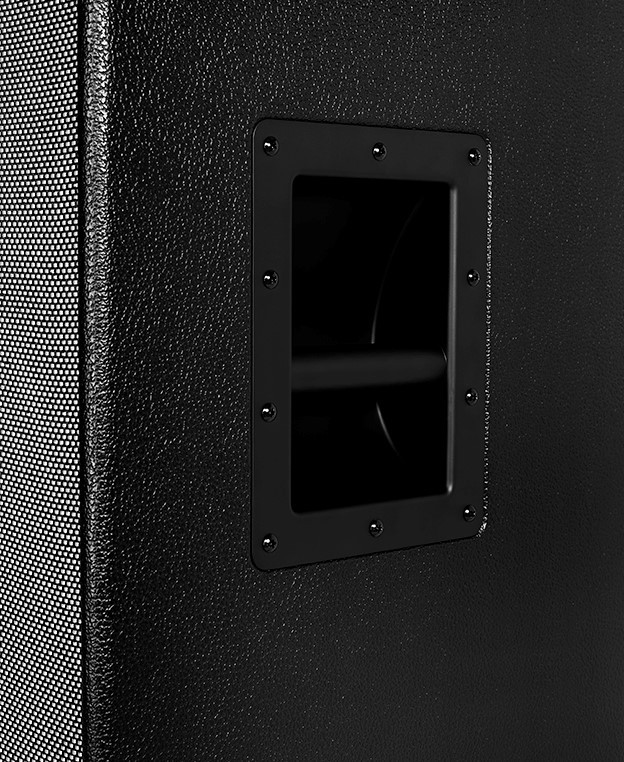

- Side Mounted Recessed Handle
- 12 dB/Octave Crossover w/Tweeter Level Control, SpeakON® & ¼” Jacks
SPECIFICATIONS:
| Power Handling | 500 Watts |
| Frequency Response | 47-14KHz |
| Sensitivity 1W/1M | 99dB |
| Nominal Impedance | 8 ohm |
| Crossover Frequency | 4.7K Hz |
| Weight | 17,69 Kg |
| Size | 66,67 x 41,9 x 39.4cm |
Speaker Components:
- Two — premium Ferrite/Ceramic 10″ loudspeaker utilizing a unique dual-wound voice coil design for increased power handling and efficiency.
- One – Compression Bullet Tweeter w/Ferro-Fluid Cooling

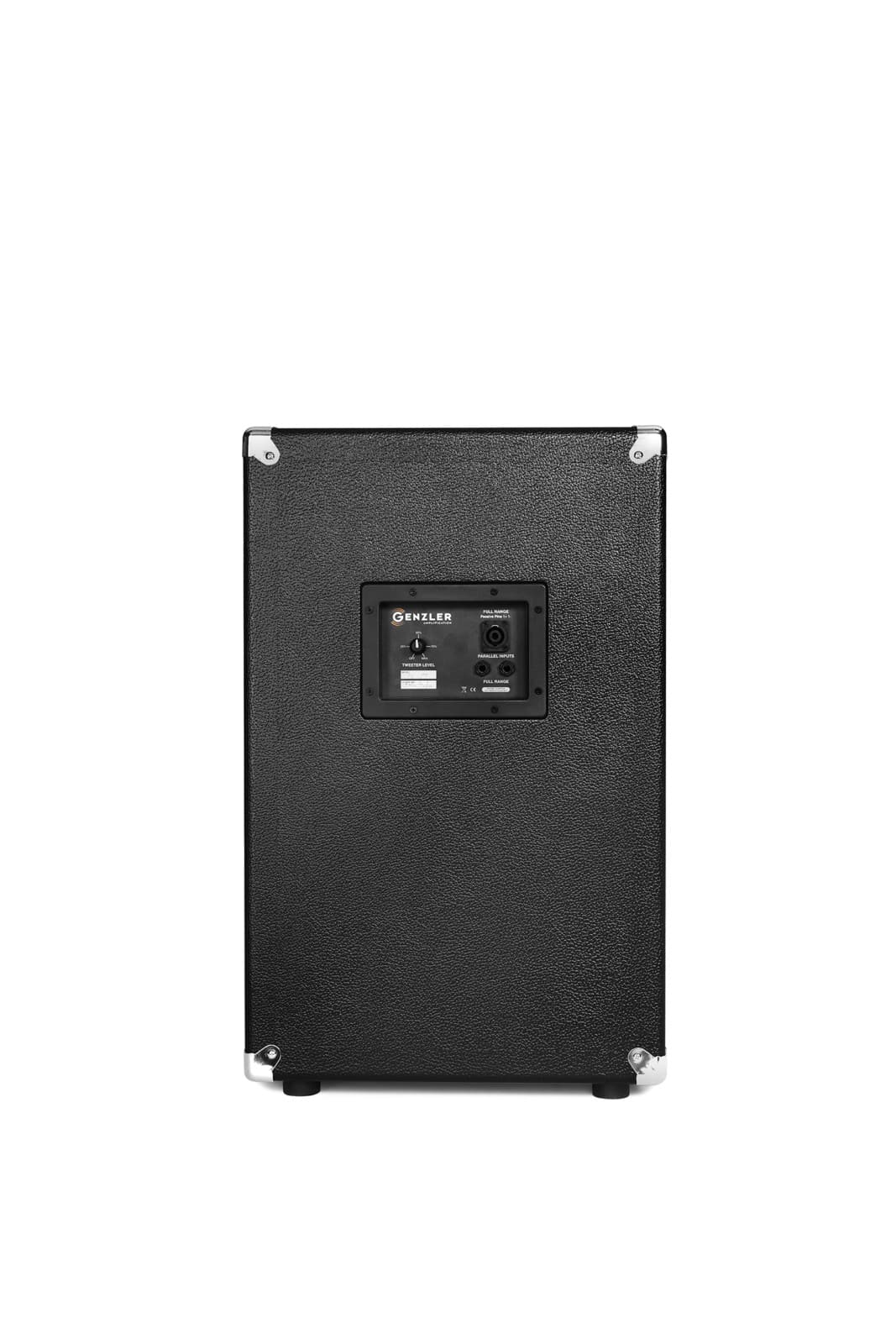

Input Panel/Crossover Network:
- Custom designed 12dB/octave slope with 100W L-Pad level control.
- One — SpeakON® NL-4 connector and two – ¼” sealed jacks; to reduce rear cabinet air loss and noise.
Cabinet Finish:
- Heavy-duty textured black vinyl.
- Metal nickel corners.
- Comfortable, Side mounted, recessed handle
- Woven grille cloth with Silver piping.
- Large rubber feet.
